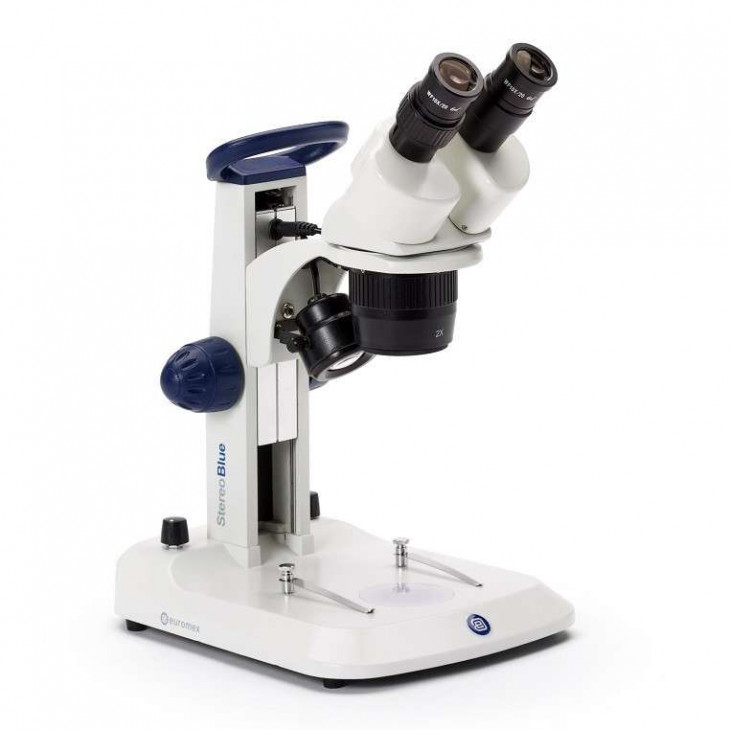

StereoBlue SB.1402

SPECIFICATIONS

EYE

Pair of eyepieces WF10x / 20 mm with rubber bumpers.

HEAD

Head binocular with tilt to 45°. Diopter adjustment in a porta-eye.

Distance inter-pupillary adjustable between 55 mm and 75 mm

All the optics are coated with anti-fungal and anti-reflective to obtain the maximum performance of the light

MODELS WITH DOUBLE MAGNIFICATION FACTOR

• Nosepiece with objectives-rotating dual 2x / 4x

• Magnification 20x / 40x (can be extended to 120x)

• Field of view 10 mm / 5.0 mm

• Working distance 100 mm

SUPPORT

• Support of rack-and-pinion of the Series StereoBlue are equipped with bases flat ergonomically designed and two clamps subject samples. Includes plate and transparent plate black/white Ø 60 mm

• The approach macromético is equipped with voltage control.

• The brackets are made of alloy cast metal with a coating of hardened whitish in color.

LIGHTING

With illumination incident and transmitted LED 3 W dimmable that can be used simultaneously or separately.

PACKAGING

Supplied with power cable, case for dust, rubber protectors for the lenses, a spare fuse, tabletops, transparent and opaque, white/black Ø 60 mm) and user's manual.

All packed in a box of polystyrene.
